OSL – Show UDIM

Small shader to show the current UDIM tile in the render. Useful if you need to know which UDIM tile to look up!

Download links
http://www.rensheeren.com/osl/showUDIM_tex_v001.osl
http://www.rensheeren.com/osl/rhfunctions.h
Save both in the same folder, both are needed for the shader to work.

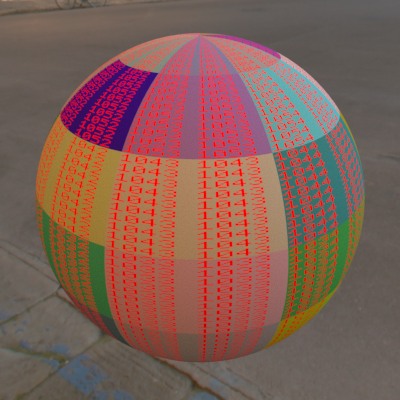

showudim_rndr1

Features
– It displays the current UDIM tile number.

How to use
Vray:
– Create a VRay OSL Texture map.
– Load in the downloaded OSL shader.
– Works best with a VrayLightMtl (no clamping).
– Make sure ‘wrap texture coordinates’ is disabled!

showudim_ui

showudim_wrapdisable

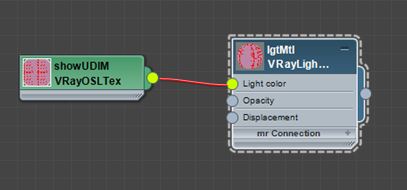

showudim_node

Properties
– display mode
Different options to display the UDIM tile number. Either as text or as colour information.
– color_bg
Background colour.
– color_text
Text colour.
– random_bg_col
Creates a random background colour for each UDIM tile.
– mode_1_spacing
How many text repeats you get for display mode 1.

showudim_rndr2
Display mode 2.

Code

#include "rhfunctions.h"


/*

showUDIM_tex_v001


By Rens Heeren (mail [at] rensheeren [dot] com)


Use as an OSL texture, not as an OSL material.


Simple shader to show the UDIM tile number in the render. For example you have a part of the model where
the map isn't working. Which UDIM is that? You use this shader.

Usage:
- For best result don't clamp the output.
- For VRay specifically this means using it with a VRayLightMtl.
- Make sure wrap texture coords is off in the OSL shader! Oterwise it will display only UDIM 1001.



Use at your own risk.



2016/04/02 - Created (rh)

*/





shader
showUDIM_tex_v001
(
	int display_mode = 1
		[[ string widget = "mapper",
        string description = "1 UDIM text, 2 UV info, 3 UDIM as BG, 4 UV as BG",
        string options = "1 UDIM text:1|2 UV info:2|3 UDIM as BG:3|4 UV as BG:4" ]],

	color color_bg = color(0.5)
		[[ string description = "Background colour" ]],

	color color_text = color(1, 0, 0)
		[[ string description = "Text colour" ]],

	int random_bg_col = 0
		[[ string widget = "checkBox",
		string description = "Random colour per UDIM tile" ]],

	float mode_1_spacing = 10.0
		[[ string description = "Number of text repeats for display mode 1" ]],

	output color col_out = color(0),
	output float alpha_out = 1.0
)
{
	color c_bg = color_bg;
	color c_txt = color_text;
	int i_rndBG = random_bg_col;
	int i_mode = display_mode;
	float f_spacing = mode_1_spacing;

	color c_main = color(0);

	int i_output = 0;

	float f_uclamp = clamp(u, -9999.0, 9999.0);
	float f_vclamp = clamp(v, -9999.0, 9999.0);

	float f_uspace = ceil(f_uclamp);
	float f_vspace = ceil(f_vclamp);

	int i_uspace = int(f_uspace);
	int i_vspace = int(f_vspace);
	int i_ufloor = int(floor(f_uclamp));
	int i_vfloor = int(floor(f_vclamp));

	int i_udimErr = 0;

	if (i_uspace > 9 || i_vspace > 899 || i_uspace < 1 || i_vspace < 1)
	{
		i_udimErr = 1;
	}

	int i_udim = 1000;

	if (i_udimErr == 0)
	{
		i_udim = 1000 + i_ufloor + 1 + i_vfloor * 10;
	}

	int i_udim1, i_udim2, i_udim3, i_udim4;
	fn_format04d(i_udim, i_udim1, i_udim2, i_udim3, i_udim4);

	int i_uspace1, i_uspace2, i_uspace3, i_uspace4;
	fn_format04d(i_uspace, i_uspace1, i_uspace2, i_uspace3, i_uspace4);

	int i_vspace1, i_vspace2, i_vspace3, i_vspace4;
	fn_format04d(i_vspace, i_vspace1, i_vspace2, i_vspace3, i_vspace4);


	if (i_rndBG)
	{
		c_bg[0] = cellnoise((f_uspace / 3) * 123, f_vspace * 456);
		c_bg[1] = cellnoise((f_uspace * 3) * 689, f_vspace * 123);
		c_bg[2] = cellnoise((f_uspace * 2) * 456, f_vspace * 789);
		c_bg /= 2;
	}


	float f_unit = 1.0 / 11.0;
	float f_pad = f_unit / 10.0;


	if (i_mode == 1)
	{
		//UDIM number

		f_unit = 1.0 / f_spacing;
		f_pad = f_unit / 10.0;


		float f_unit1 = (floor((u - i_ufloor)/(5 * f_unit)))*5*f_unit;
		float f_rptu =  floor(((u - i_ufloor) / (f_unit1))) * (f_unit1);
		float f_rptv =  floor(((v - i_vfloor) / f_unit)) * f_unit;

		if (i_udimErr == 0)
		{
			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 0 + f_pad),
				(i_ufloor + f_rptu + f_unit * 1 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, (i_udim1 + 28));

			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 1 + f_pad),
				(i_ufloor + f_rptu + f_unit * 2 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, (i_udim2 + 28));

			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 2 + f_pad),
				(i_ufloor + f_rptu + f_unit * 3 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, (i_udim3 + 28));

			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 3 + f_pad),
				(i_ufloor + f_rptu + f_unit * 4 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, (i_udim4 + 28));
		}
		else
		{
			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 0 + f_pad),
				(i_ufloor + f_rptu + f_unit * 1 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, 5);

			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 1 + f_pad),
				(i_ufloor + f_rptu + f_unit * 2 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, 18);

			i_output += fn_charprint(
				(i_ufloor + f_rptu + f_unit * 2 + f_pad),
				(i_ufloor + f_rptu + f_unit * 3 - f_pad),
				(i_vfloor + f_rptv + f_pad),
				(i_vfloor + f_rptv + f_unit - f_pad),
				u, v, 18);
		}

		clamp(i_output, 0, 1);
		c_main = mix(c_bg, c_txt, i_output);
	}

	if (i_mode == 2)
	{

		float f_t2v1 = i_vfloor + 9 * f_unit + f_pad;
		float f_t2v2 = i_vfloor + 10 * f_unit - f_pad;
		float f_t4v1 = i_vfloor + 8 * f_unit + f_pad;
		float f_t4v2 = i_vfloor + 9 * f_unit - f_pad;
		float f_t5v1 = i_vfloor + 7 * f_unit + f_pad;
		float f_t5v2 = i_vfloor + 8 * f_unit - f_pad;

		// U txt
		i_output += fn_charprint((i_ufloor + 1 * f_unit + f_pad), (i_ufloor + 2 * f_unit - f_pad),
			f_t2v1, f_t2v2, u, v, 21);

		// V txt
		i_output += fn_charprint((i_ufloor + 1 * f_unit + f_pad), (i_ufloor + 2 * f_unit - f_pad),
			f_t4v1, f_t4v2, u, v, 22);

		// UDIM txt
		i_output += fn_charprint((i_ufloor + 1 * f_unit + f_pad), (i_ufloor + 2 * f_unit - f_pad),
			f_t5v1, f_t5v2, u, v, 21);
		i_output += fn_charprint((i_ufloor + 2 * f_unit + f_pad), (i_ufloor + 3 * f_unit - f_pad),
			f_t5v1, f_t5v2, u, v, 4);
		i_output += fn_charprint((i_ufloor + 3 * f_unit + f_pad), (i_ufloor + 4 * f_unit - f_pad),
			f_t5v1, f_t5v2, u, v, 9);
		i_output += fn_charprint((i_ufloor + 4 * f_unit + f_pad), (i_ufloor + 5 * f_unit - f_pad),
			f_t5v1, f_t5v2, u, v, 13);


		if (i_udimErr == 0)
		{
			// U number
			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, (i_uspace1 + 28));
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, (i_uspace2 + 28));
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, (i_uspace3 + 28));
			i_output += fn_charprint((i_ufloor + 9 * f_unit + f_pad), (i_ufloor + 10 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, (i_uspace4 + 28));

			// V number
			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, (i_vspace1 + 28));
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, (i_vspace2 + 28));
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, (i_vspace3 + 28));
			i_output += fn_charprint((i_ufloor + 9 * f_unit + f_pad), (i_ufloor + 10 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, (i_vspace4 + 28));

			//UDIM number
			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, (i_udim1 + 28));
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, (i_udim2 + 28));
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, (i_udim3 + 28));
			i_output += fn_charprint((i_ufloor + 9 * f_unit + f_pad), (i_ufloor + 10 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, (i_udim4 + 28));
		}
		else
		{
			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, 5);
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, 18);
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t2v1, f_t2v2, u, v, 18);

			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, 5);
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, 18);
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t4v1, f_t4v2, u, v, 18);

			i_output += fn_charprint((i_ufloor + 6 * f_unit + f_pad), (i_ufloor + 7 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, 5);
			i_output += fn_charprint((i_ufloor + 7 * f_unit + f_pad), (i_ufloor + 8 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, 18);
			i_output += fn_charprint((i_ufloor + 8 * f_unit + f_pad), (i_ufloor + 9 * f_unit - f_pad),
				f_t5v1, f_t5v2, u, v, 18);
		}


		clamp(i_output, 0, 1);
		c_main = mix(c_bg, c_txt, i_output);


		int i_box1 = fn_charprint((i_ufloor + 1 * f_unit + f_pad), (i_ufloor + 2 * f_unit - f_pad),
			(i_vfloor + 6 * f_unit + f_pad), (i_vfloor + 7 * f_unit - f_pad), u, v, 27);

		int i_box2 = fn_charprint((i_ufloor + 2 * f_unit + f_pad), (i_ufloor + 3 * f_unit - f_pad),
			(i_vfloor + 6 * f_unit + f_pad), (i_vfloor + 7 * f_unit - f_pad), u, v, 27);

		color c_box1 = color(i_uspace, i_vspace, 0);
		color c_box2 = color(u, v, 0);

		c_box1 *= i_box1;
		c_box2 *= i_box2;

		c_main *= 1 - i_box1;
		c_main *= 1 - i_box2;
		c_main = c_main + c_box1 + c_box2;
	}

	if (i_mode == 3)
	{
		if (i_udimErr == 0)
		{
			c_main = color(float(i_udim));
		}
		else
		{
			c_main = color(1000.0, 0, 0);
		}
	}

	if (i_mode == 4)
	{
		c_main = color(u, v, 0);
	}

	col_out = c_main;
}
